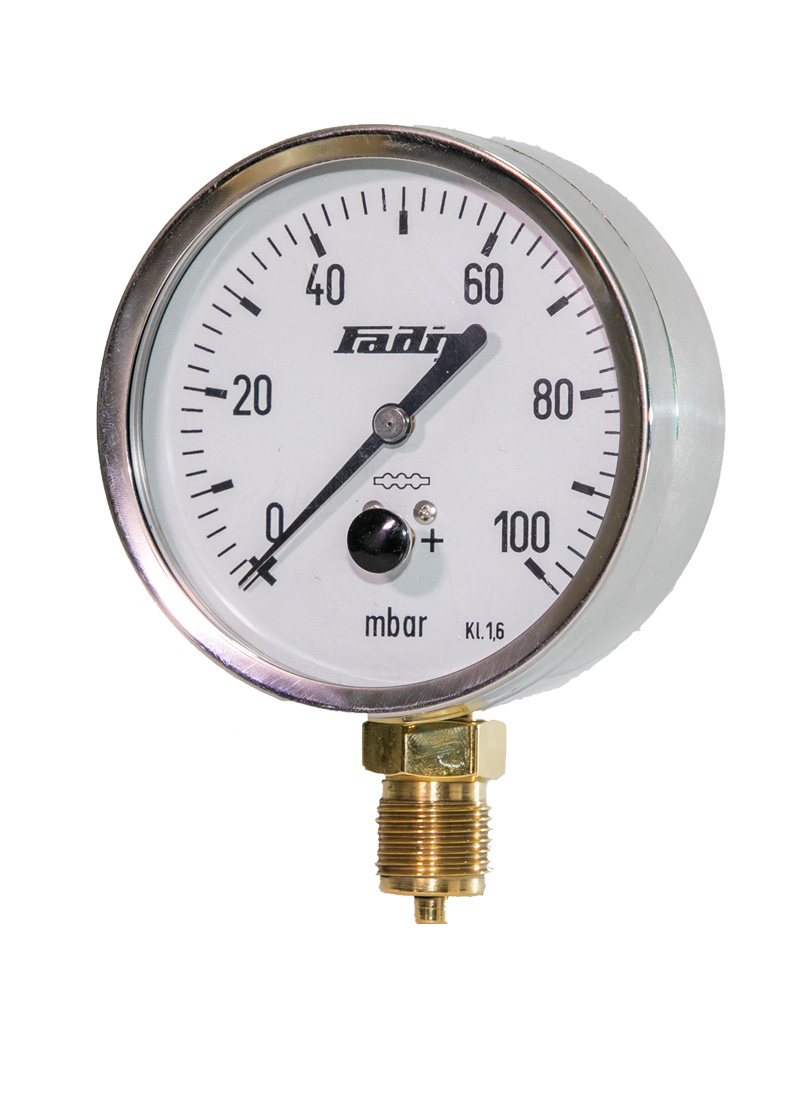

Capsule pressure gauge
 Suitable for non aggressive gaseus and liquid media and ambient, using in the industryMRČ/N/MB -capsule manometer lower mount, case and ring stainless steel |
| CONSTRUCTION | EN 837-3 |
| NOMINAL SIZES | 80,100,160 mm |
| ACCURACY CLASS | 1.0%, 1.6%, 2.5% |
| SCALE RANGE | DN80, DN100, DN160 -1..0..1000 mbar |
| PRESSURE LIMITS | 75% of full scale value short time 1.3x FS value |
| TEMPERATURES | ambient -35 ÷ 65 C medium 65 C |
| CONNECTION | back mount or lower mount, brass thread according to inquiry |
| CASE | stainless steel or steel with black plastification |
| RING AND LENS | stainless steel with glass , safety glass, or polycarbonate, with crimped or bayonet type ring |
| MEASURING ELEMENT | membrane or bourdon tube C ,Cu alloy |
| MOVEMENT | brass |
| DIAL | white aluminium, dial marking black, with zero adjustment |
| POINTER | black powder coated aluminium |
| INGRESS PROTECTION | IP 54 EN 60529 |
| MARKING | Ø100 G1/2 (0÷400) MRČ/MB/N Kl.1,6 |
| ADDITIONAL MARKING | -1 pressure gauge with restrictor /N case and ring stainless steel /PN with flange |
