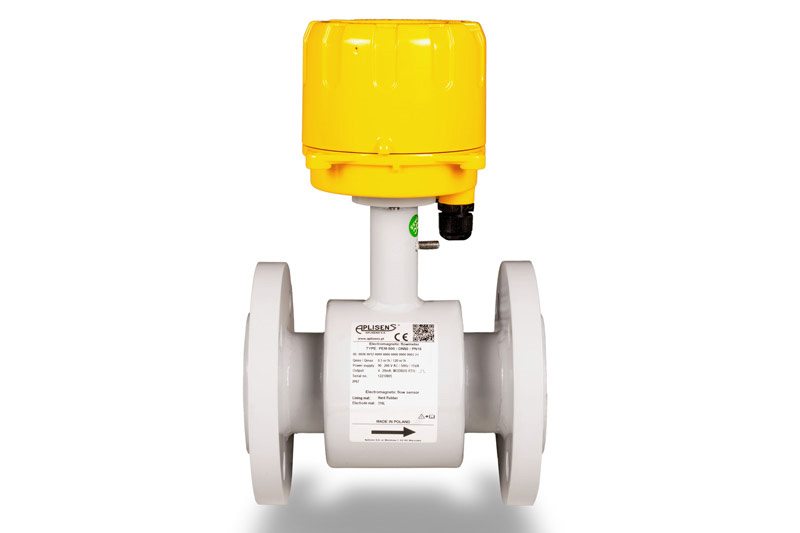

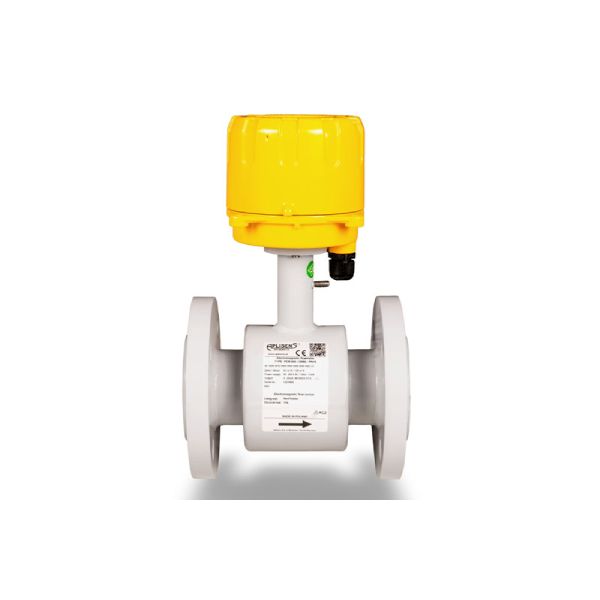

Electromagnetic flowmeter PEM-500
 Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of 5 µS/cm: Acid, alkalis, Paints, Pastes, Water, wastewater. The measuring system consists of a transmitter and a sensor. |
| NOMINAL SIZES: | DN 10 … 300 , ANSI 0.5″..12″ |
| OUTPUT SIGNAL: | 4…20 mA /pulse/frequency Modbus RTU/ RS 485 |
| ACCURACY: | 0.5% |
| HOUSING: | Čelik |
| CONNECTION: | Flanges according to DIN and ANSI |
| TEMPERATURES: | ambient: -20.. 60C medium: -25…90C |
| MAX. STATIC PRESSURE: | 16, 25, 40 bar |
| INGRESS PROTECTION: | IP67/IP68 |
