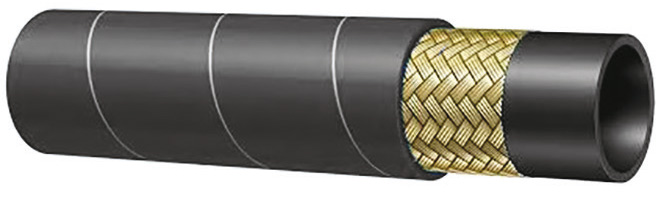

Hydraulic hose EN 853 -1SN – SAE 100 R1AT
| INNER TUBE: | black, oil resistant synthetic rubber |
| REINFORCEMENT: | one high tensile textile braid |
| COVER: | black, weather and ozone resistant synthetic rubber |
| TEMP. OF APPLICATION: | -40° C do +100° C kratkotrajno do +125° C |
| APPLICATION: | protok hidrauličnih tečnosti srednjeg pritiska, lož ulja, vode i vazduha |
| NP6 | NP8 | NP10 | NP13 | NP16 | NP20 | NP25 | NP32 | NP40 | NP50 | |
| Inside diameter (mm) |
6.4 | 7.9 | 9.5 | 12.7 | 15.9 | 19.0 | 25.4 | 31.8 | 38.1 | 50.8 |
| Outside diameter | 12.7 | 14.2 | 16.5 | 19.9 | 23.0 | 27.0 | 35.0 | 42.5 | 49.7 | 62.9 |
| Max. working pressure (bar) |
225 | 215 | 180 | 160 | 130 | 105 | 88 | 63 | 50 | 40 |
| Min. Bending radius (mm) |
100 | 115 | 130 | 180 | 200 | 240 | 300 | 420 | 500 | 630 |
