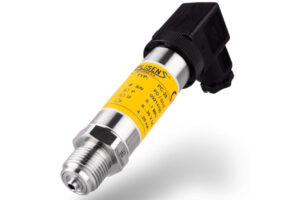

Pressure transmitter AS
 Smart s arepressure transmitter applicable to the measurement of the pressure, underpressure and absolute pressure of gases, vapours and liquids. The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type of manometric liquid. |
| MEASURING RANGE: | min. 0 .. 25 mbar; max 0 … 1000 bar |
| OUTPUT SIGNAL: | 4…20 mA or 0…10V |
| ACCURACY: | 0.2% (0.16%) |
| HOUSING: | 304 / 316 Stainless Steel |
| CONNECTION: | 1/2″NPT, M20x1.5,G1/2″, flush dijaphragm(G1/2″,G1″),diaphragm seals |
| TEMPERATURES: | ambient: -40.. 80C medium: -40.. 130C |
| EXPLOSION PROOF CERTIFICATE: | ATEX, IECEx |
| INGRESS PROTECTION: | IP68 |
