Namenjeni merenju pritiska neagresivnih, tečnih i gasovitih fluida u laboratorijskim uslovima.

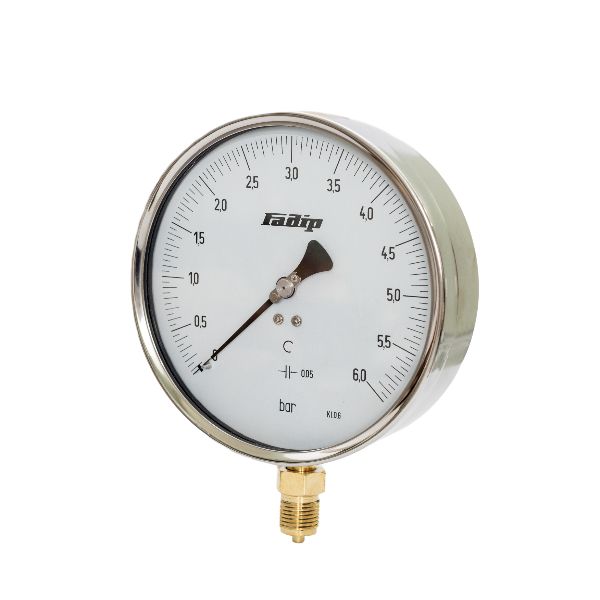

MRL – manometar radijalni liven.
| CONSTRUCTION | EN 837-1 |
| NOMINAL SIZES | 160 mm |
| ACCURACY CLASS | 0.6% |
| SCALE RANGE | DN160 -1..0..600 bar |
| PRESSURE LIMITS | 75% of full scale value short time 1.3x FS value for up to 100 bar 1.15x FS value for above 100 bar |
| TEMPERATURES | ambient -20 ÷ 60 C medium 60 C |
| CONNECTION | lower mount, brass thread according to inquiry |
| CASE | black powder coated steel or stainless steel |
| RING AND LENS | black plastificated cast aluminium with glass or stainless steel with glass |
| MEASURING ELEMENT | bourdon tube C or Helical type, stainless steel |
| MOVEMENT | brass |
| DIAL | white aluminium, dial marking black |
| POINTER | black powder coated aluminium |
| INGRESS PROTECTION | IP 54 EN 60529 |
| MARKING | Ø160 G1/2 (0÷10) MRL Kl.0,6 |
| ADDITIONAL MARKING | -1 pressure gauge with restrictor /N case and ring stainless steel |
