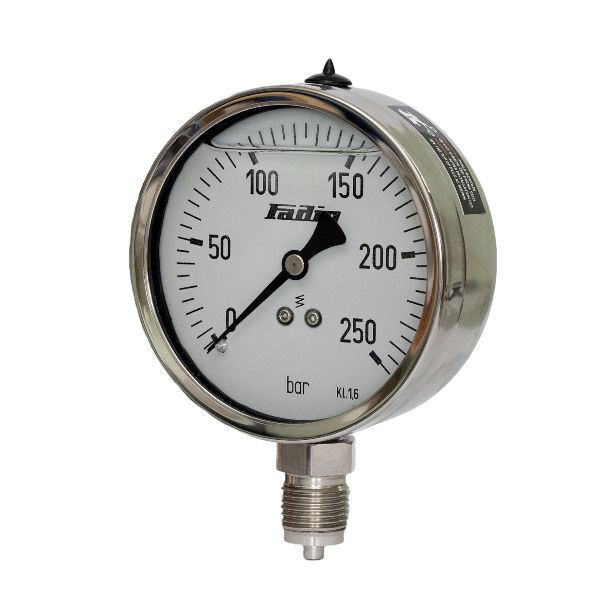

Suitable for aggressive gaseus and liquid media and ambient, using for applications with high dynamic pressure pulsation or vibration.MRN/G -manometer lower mount all stainless steel filling with glycerine.
MAN/G -manometer back mount all stainless steel filling with glycerine.
| CONSTRUCTION | EN 837-1 |
| NOMINAL SIZES | 40,50 63, 80,100,160 mm |
| ACCURACY CLASS | 1.0%, 1.6%, 2.5% |
| SCALE RANGE | -DN40,DN50 -1..0..60 bar - DN63, DN80 -1..0..600 bar - DN100, DN160 -1..0..1600 bar |
| PRESSURE LIMITS | -DN40,DN50,DN63 , 3/4x full scale, fluctuating 2/3x full scale , short time -full scale -DN80,DN100 i DN160 ,full scale , fluctuating 0.9x full scale , short time 1.3x full scale |
| TEMPERATURES | -ambient -20 ÷ 60 C -medium 100 C -on special request 150 C |
| CONNECTION | back mount or lower mount, stainless steel AISI 304 or 316L thread according to inquiry |
| CASE | stainless steel with pressure relief at back |
| RING AND LENS | stainless steel with glass , safety glass, or polycarbonate, with crimped or bayonet type ring |
| MEASURING ELEMENT | bourdon tube C or Helical type, stainless stee |
| MOVEMENT | stainless steel |
| DIAL | white aluminium, dial marking black |
| POINTER | black powder coated aluminium |
| INGRESS PROTECTION | IP 65 EN 60529 |
| MARKING | Ø100 G1/2 (0÷10) MRN/G Kl.1,6 |
| ADDITIONAL MARKING | - -1 pressure gauge with restrictor /PN with flange |
| FILLING | glycerine 99.7% |
