Suitable for aggressive gaseus and liquid media and ambient, using for applications in chemical and food industry.

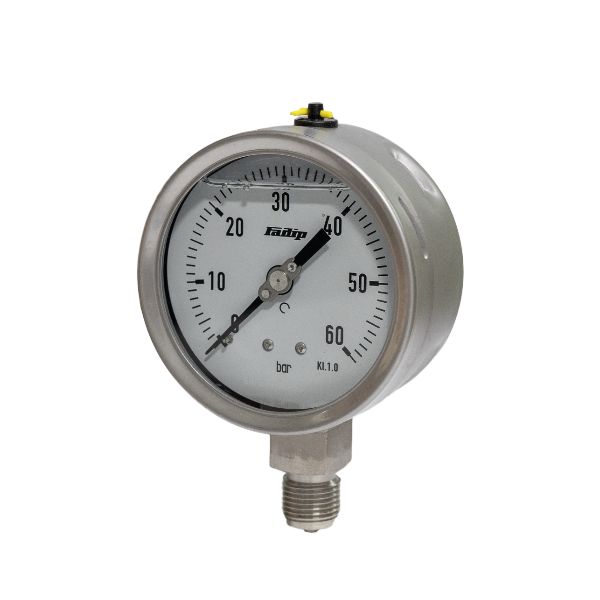

MRN – manometer lower mount , all stainless steel.
MAN – manometer back mount , all stainless steel.
| CONSTRUCTION | EN 837-1 |
| NOMINAL SIZES | 63, 100,160 mm |
| ACCURACY CLASS | 1.0%, 1.6% |
| SCALE RANGE | – DN63, -1..0..600 bar – DN100, DN160 -1..0..1600 bar |
| PRESSURE LIMITS | 75% of full scale value short time 1.3x FS value for up to 100 bar 1.15x FS value for above 100 bar |
| TEMPERATURES | - ambient -20 ÷ 60 C - medium 60 C - on special request 150 C |
| CONNECTION | Back mount or lower mount, stainless steel AISI 304 or 316L,thread according to inquiry |
| CASE | Stainless steel |
| RING AND LENS | stainless steel with glass or safety glass, with crimped or bayonet type ring |
| MEASURING ELEMENT | bourdon tube C or Helical type, stainless steel |
| MOVEMENT | stainless steel |
| DIAL | white aluminium, dial marking black |
| POINTER | black powder coated aluminium |
| INGRESS PROTECTION | IP54 / IP 65 EN 60529 |
| MARKING | Ø100 G1/2 (0÷10) MRN/B Kl.1,0 |
| ADDITIONAL MARKING | - 1 pressure gauge with restrictor - /PN with flange |
