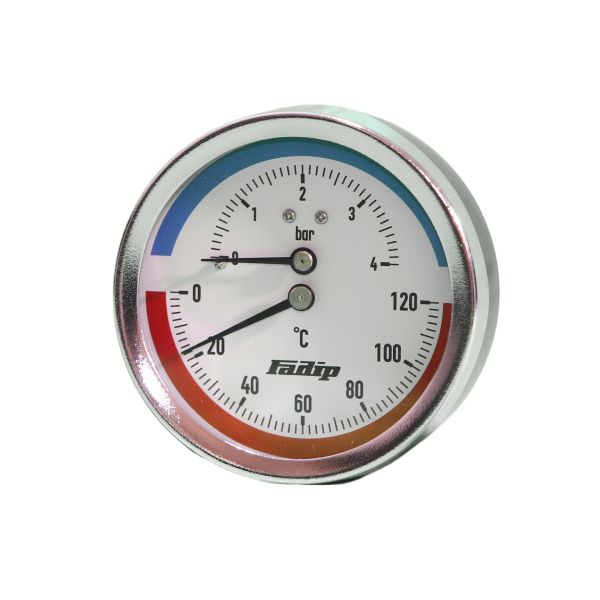

Thermomanometer

Image module

Suitable for pressure and temperature measurement in heating systems.

CONSTRUCTION EN 837-1 for pressure
NOMINAL SIZES 80 mm
ACCURACY CLASS 2.5% or 1.6%
SCALE RANGE DN80 0..4 bar, 0...120 C
PRESSURE LIMITS 75% of full scale value short time 1.3x FS value
CONNECTION back mount, brass thread according to inquiry
CASE black powder coated steel
RING AND LENS plastic
MEASURING ELEMENT bourdon tube C, Cu alloy and bimetal coil
MOVEMENT brass
DIAL white aluminium, with temperature and pressure scale
POINTER black powder coated aluminium
INGRESS PROTECTION IP54 EN 60529
MARKING Ø80 G1/2 (0÷4 / 120 ) TM
